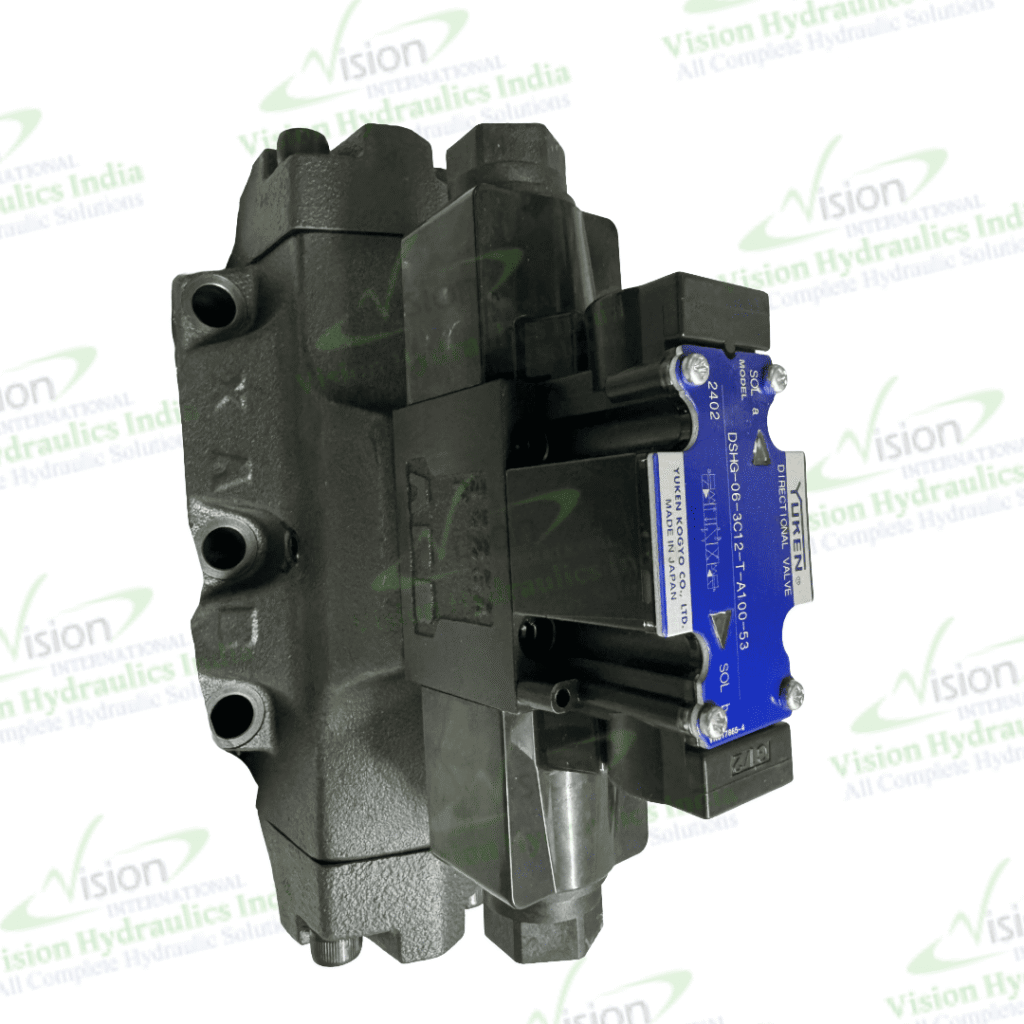

Model Code: DSHG-06-3C12-T-A100-53

This is a large, two-stage, gasket-mounted directional control valve engineered to safely route massive volumetric fluid flow rates at operating pressures up to 31.5 MPa (315 bar). It features a small, high-efficiency top-mounted pilot valve that acts as the primary hydraulic trigger to shift the larger main-stage spool assembly below, preventing destructive fluid shock waves within the machine circuits. Configured with a spring-centered, multi-port directional spool layout (3C12) and operating on a 100V AC (A100) pilot power line, this rugged valve is a standard critical control component used to handle major cylinder strokes and high-power hydraulic motors in automated industrial press lines and plastic injection molding machinery.
