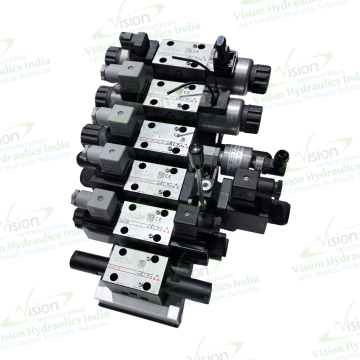

Model Code: Multi-valve manifold array including DHE-0713 DC 10, SDHE-0631/2/FV-X BC 10S, DHE-0711/AMV-X, SDHL-0714, and DH-0511 80

This is a multi-station hydraulic manifold showcase demonstrating a compact vertical and parallel stacking system of standard, high-performance Cetop-03 size directional control valves. The assembly features a mix of standard on-off solenoids, safety-monitored directional spools with inductive proximity switches, manual hand-lever overrides, and specialized low-leakage poppet configurations. This modular design allows complex hydraulic circuit routing, speed selection, and safety interlocking to be consolidated onto a single compact subplate, minimizing external piping in industrial machinery.

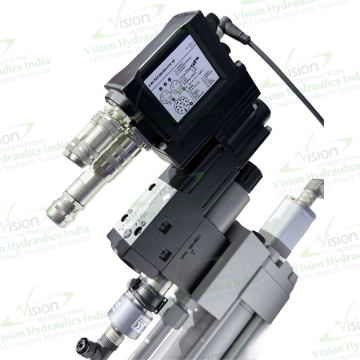

Model Code: Z-RI-TEZ-DN-EH-01H 45

This advanced component is a high-dynamics proportional valve equipped with an on-board integrated digital axis controller. Beyond basic flow regulation, this module functions as a complete real-time motion computer, utilizing an EtherCAT interface (-EH) alongside a direct connection to a position transducer mounted on the hydraulic cylinder below (WAR 154521). It runs onboard PID algorithms to handle closed-loop position, speed, or force control profiles completely independent of the central machine PLC, saving critical network bandwidth.

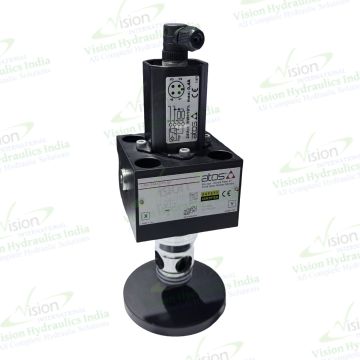

Model Code: LIDA-25433/FV 60

This is a safety-certified, slip-in hydraulic logic element (2-way cartridge valve) engineered for safety-critical circuits up to Pmax 420 bar. It features a top-mounted, inductive proximity sensor switch (24Vdc, PNP) that provides positive, mechanical verification of the internal valve poppet’s closed position. This hardware monitoring configuration is TUV-approved, making it ideal for interlocking and block-and-bleed safety functions in industrial presses and heavy automation machinery.

Model Code: E-RI-TES-N-EH-01H/K 45

This specialized component is an advanced proportional valve engineered explicitly to meet stringent functional safety standards (TUV certified up to SIL 2 / SIL 3 / PL d). It combines a high-speed EtherCAT network communication interface (-EH) with dedicated safety-critical firmware and electronics architecture (-TES). The unit features fail-safe input configurations designed to immediately execute safety-stops or controlled pressure/flow dumps during critical automated assembly or factory fault events.

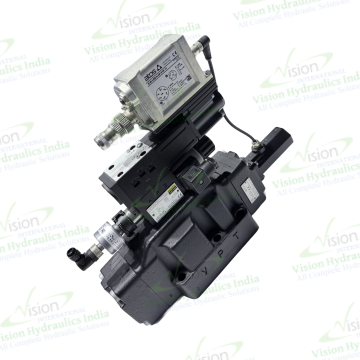

Model Code: E-RI-LEB-N-NP-01H 11

This is a two-stage digital proportional directional valve configuration designed for high-flow systems requiring exact speed and position targeting. The top-mounted E-RI-LEB control unit acts as the electronic brain, utilizing a basic serial or USB connection configuration interface (-NP) for local parameter adjustment and tuning. It functions via a closed-loop system architecture, collecting direct spool displacement readings to constantly auto-correct and adjust fluid flow passing through the large main-stage hydraulic subplate below.

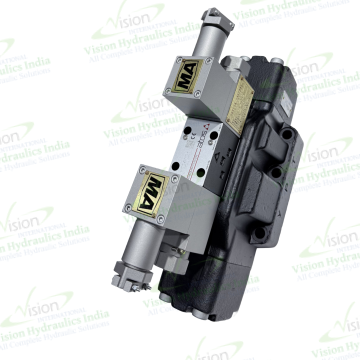

Model Code: DP-36HZ-A/MA-P1-012/25

This is a large, two-stage directional valve assembly consisting of a main stage hydraulic block operated by a top-mounted pilot valve. Distinctively, this unit features dual rugged mechanical lever/roller actuator mechanisms (labeled with the prominent “MA” casing), which are designed for robust physical trip-switching or heavy-duty manual override operations. This setup provides high-flow directional control for critical industrial machinery circuits where physical, mechanical positioning feedback is required.

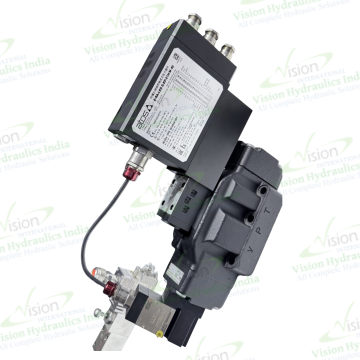

Model Code: E-RA-LES-S-EP-01HM 45

This is an explosion-proof integrated proportional valve designed safely for hazardous zones subject to explosive gases or dust. It features robust, multi-certified ATEX and IECEx internal electronic housing alongside POWERLINK fieldbus network interface capabilities (-EP) for seamless industrial integration. The unit includes a direct feedback connection to an explosion-proof linear position transducer, ensuring ultra-reliable closed-loop spool control under extreme industrial safety constraints.

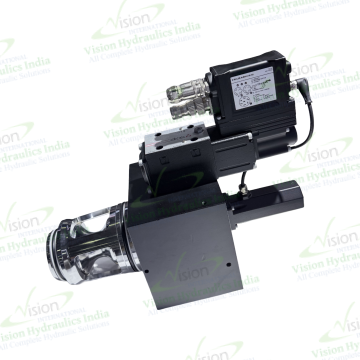

Model Code: E-RI-LES-N-EH-01H 45

This assembly consists of a high-flow, slip-in hydraulic cartridge valve paired with a top-mounted pilot proportional directional valve. The onboard electronics feature advanced EtherCAT fieldbus communication protocol support (-EH), enabling lightning-fast real-time industrial network data transmission. This setup is engineered for high-dynamics and precision flow regulation in large-scale hydraulic machinery, utilizing a closed-loop configuration with an integrated position transducer.

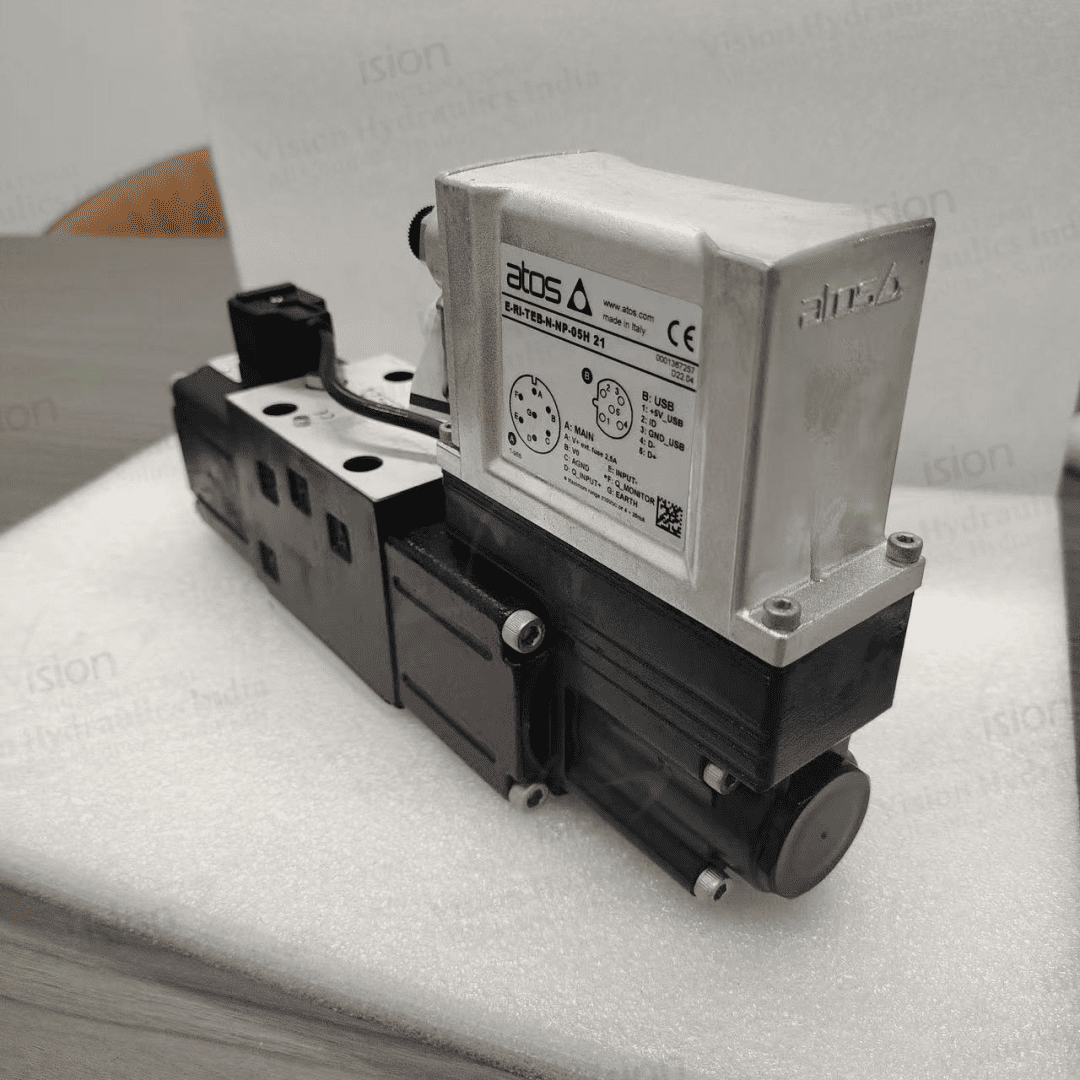

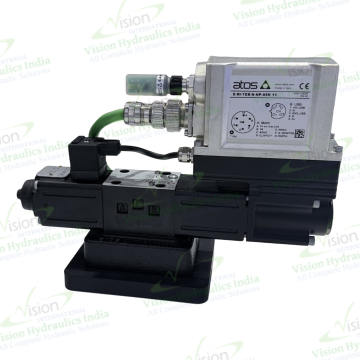

Model Code: E-RI-TEB-N-NP-05H 11

This component is an integrated digital proportional valve assembly featuring a rugged, closed-loop electronic driver mounted directly onto the hydraulic valve body. The 05H designator identifies it as a control configuration optimized for dual-solenoid proportional directional and flow control systems operating with an integral spool position transducer.
