Model Code: Consolidated stack including models DG4V-5-2A-M-U7L-H-7-50, DG4V-3-2C-M-U7L-H-7-54, and variations of DG4V-3-2A-M-U7-H-7-56, DG4V-3-2A-M-U1-H-7-56, DG4V-5-2A-M-U1-H-7-50

This is a complete modular vertical hydraulic manifold stack showcase. It consolidates two large size-05 valves at the top and a series of four size-03 direct-acting valves below onto a single system block. Every valve is equipped with clear plastic DIN connectors containing internal 24V DC LED indicator lights to visually confirm active spool engagement. This parallel block grouping allows centralized control over multiple independent cylinder strokes, saving immense physical plumbing space inside injection molding and automated press power packs.

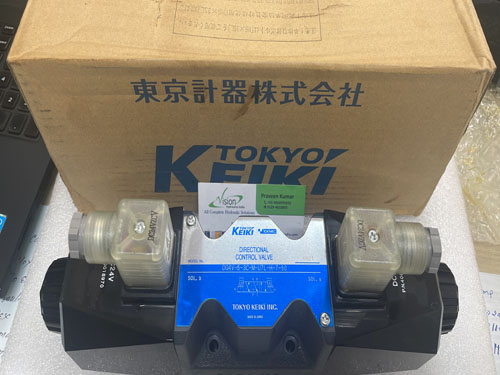

Model Code: DG4V-5-3C-M-U7L-H-7-40

This is a size-05 direct-acting directional control valve designed for subplate mounting to manage high fluid capacities and working pressures up to 25 MPa (250 bar). It features a dual-solenoid configuration with a spring-centered closed center spool design (3C), which isolates fluid pathways when the electrical system is de-energized. Outfitted with high-efficiency 24V DC wet-armature solenoids and integrated DIN connectors featuring internal LED indicator lights, this valve ensures reliable, low-shock pathway shifting for hydraulic cylinders and motors in heavy plastic machinery, automated presses, and industrial production lines.

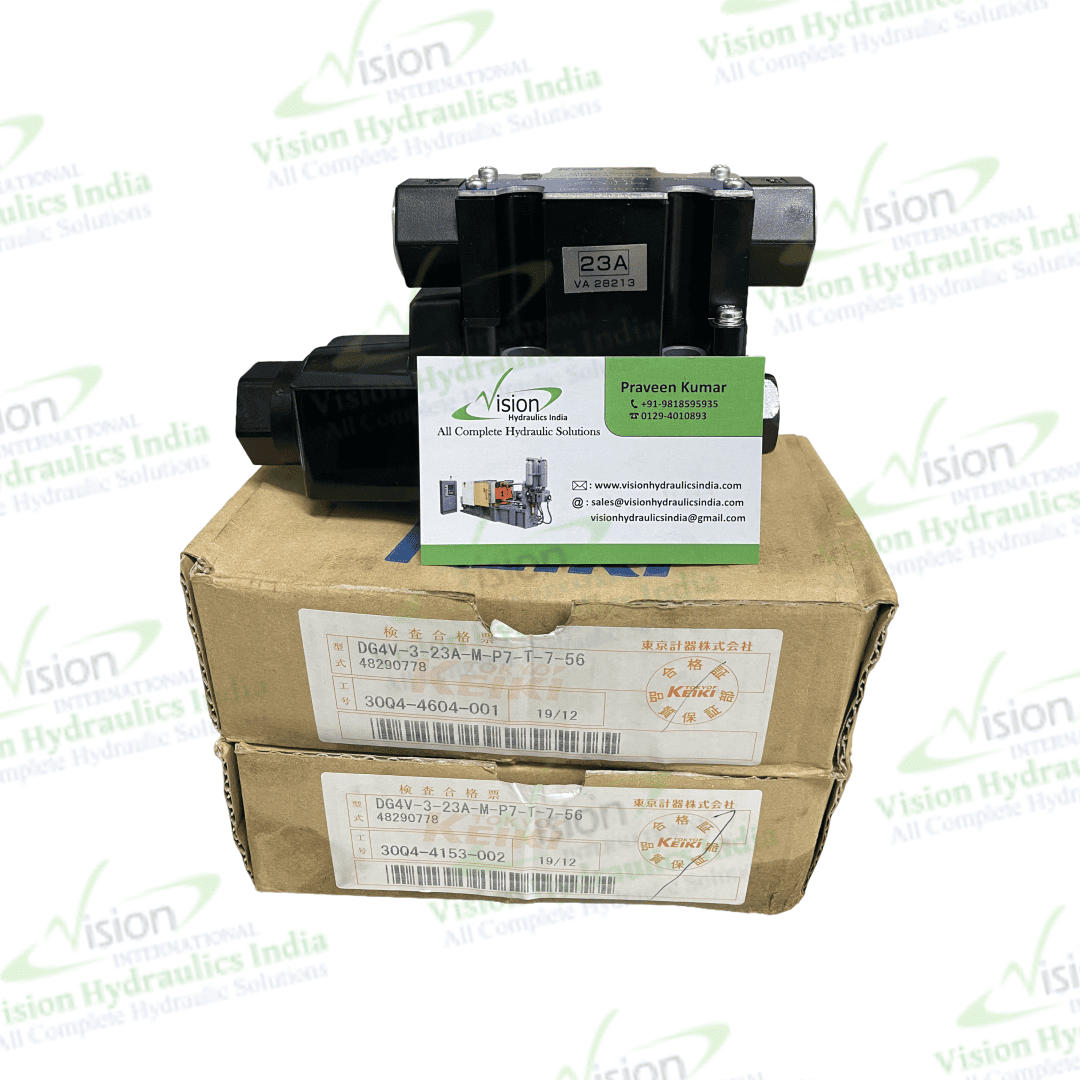

Model Code: DG4V-3-23A-M-P7-T-7-56
Material / Part Numbers: 48290778

This is a high-performance, direct-acting wet-armature solenoid directional control valve designed for ISO 4401-03 subplate mounting configurations. Operating on a maximum back pressure rating of 20.6 MPa (206 bar), the 23A spool and spring-offset architecture governs fluid pathways through smooth, low-noise electromagnetic shifting. Because the internal moving core is completely submerged in hydraulic oil, it self-lubricates and dampens mechanical impact, drastically expanding valve service life. It serves as a primary control component in automated plastic injection molding circuits and manufacturing assembly lines to manage fast, wear-free cylinder motion cycling.

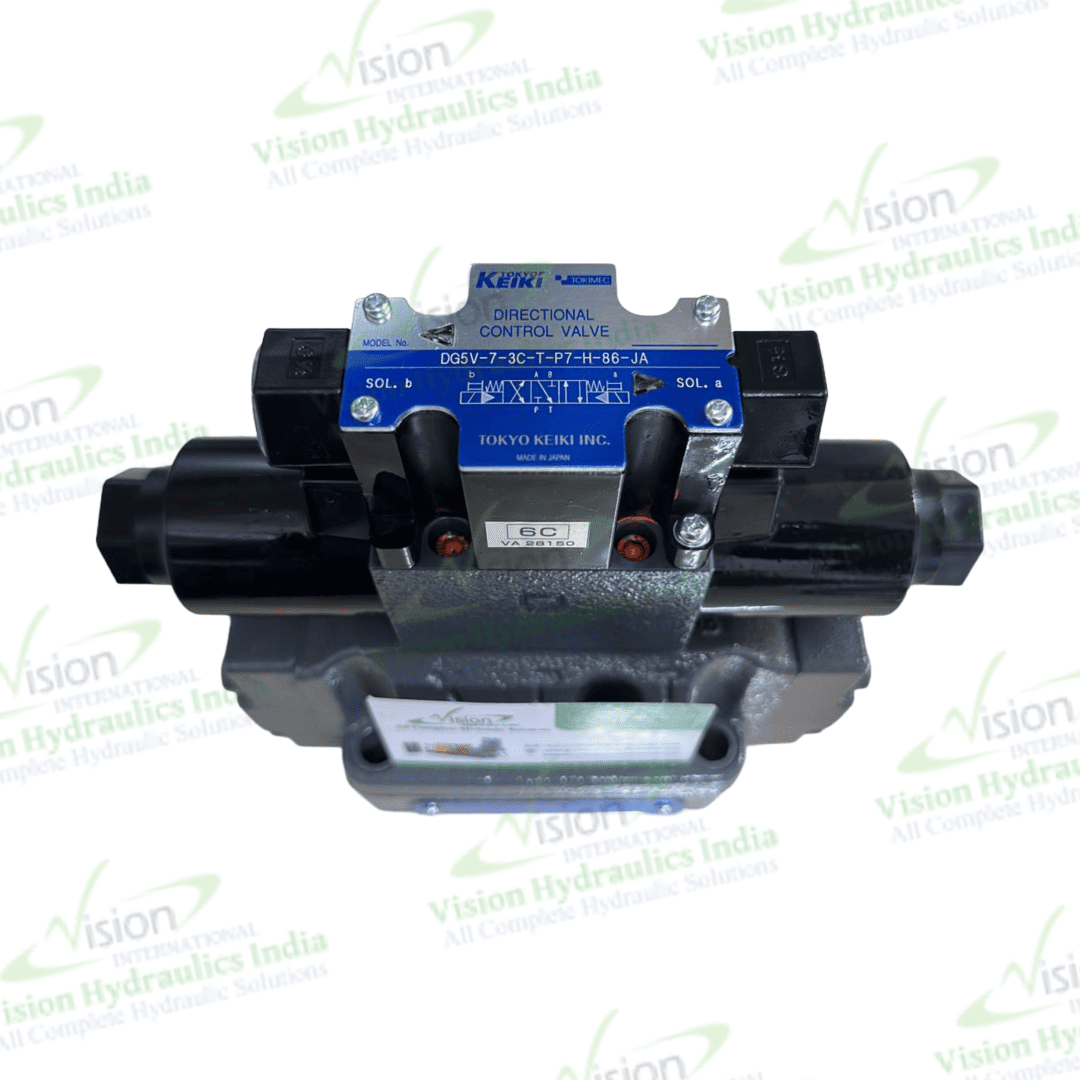

Model Code: DG5V-7-3C-T-P7-H-86-JA
Production Code: 6C VA28150

This is a two-stage, gasket-mounted hydraulic directional control valve designed for handling high flow rates and high working pressures up to 21 MPa (210 bar). It features a small, top-mounted wet armature pilot valve (DG4V-3 series) that uses hydraulic pilot pressure to smoothly shift the larger main-stage spool below, greatly reducing fluid shifting shock. Outfitted with dual-solenoid configuration logic (3C spring-centered type) and built-in surge suppression firmware interfaces, this valve is highly critical for initiating reliable start, stop, and direction control over major cylinder lines in injection molding machinery and automated industrial presses.

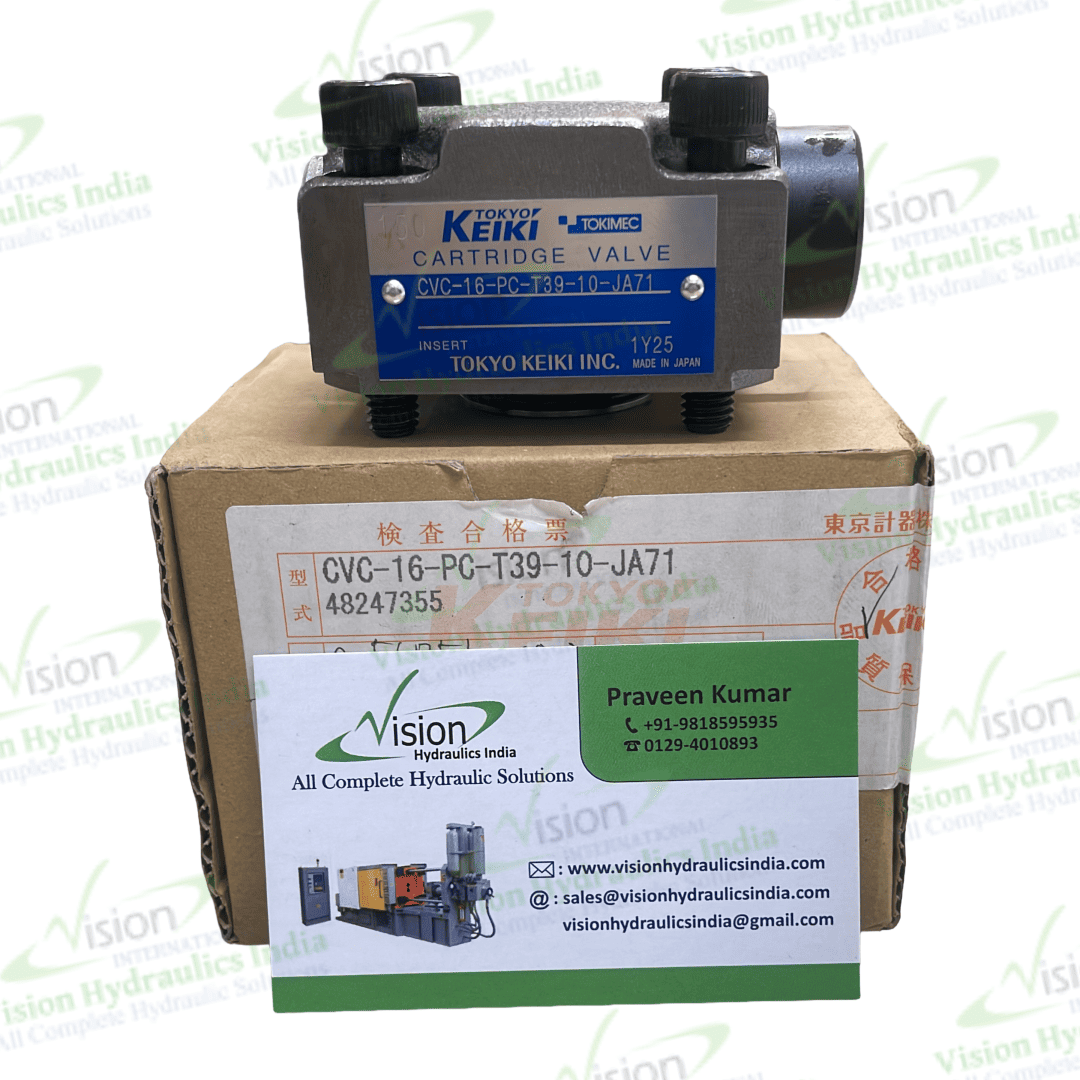

Model Code: CVC-16-PC-T39-10-JA71
Material Number: 48247355

This is a size-16 slip-in hydraulic cartridge valve (also known as a logic element) designed for high-flow manifold block installations. It features a pilot-operated poppet assembly configuration engineered for precise directional, pressure, or flow interlocking depending on the top cover plate routing. Manufactured by Tokyo Keiki (Tokimec) in Japan, this compact valve is widely applied in heavy industrial systems, such as plastic injection molding machines and die-casting equipment, to manage rapid cycle shifting and high-pressure fluid safety bypass circuits.

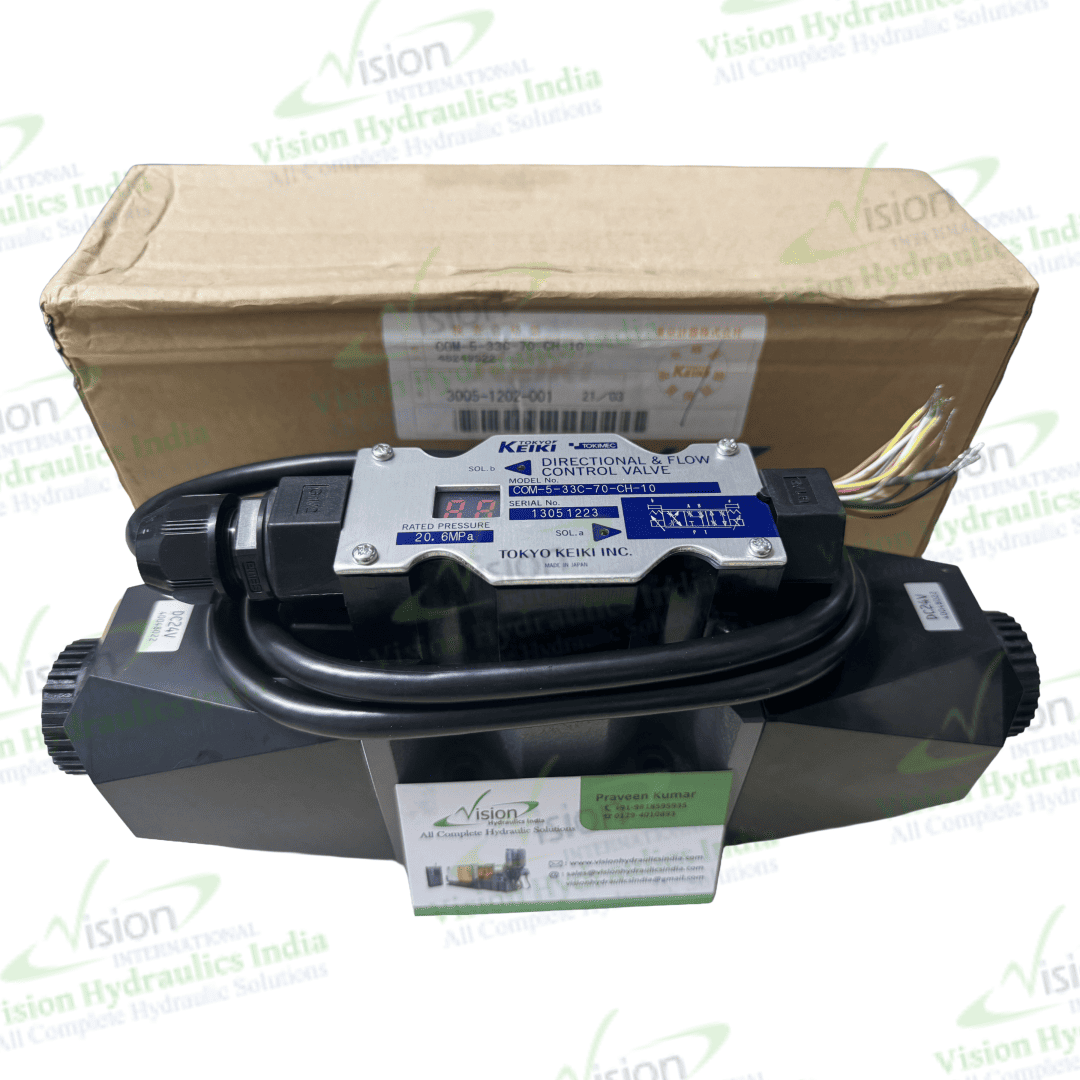

Model Code: COM-5-33C-70-CH-10
Serial / Material Number: 13051223 (Part Number reference: 3005-1202-001)

This is a high-performance, compact proportional directional and flow control valve engineered to manage both fluid direction and flow rate dynamically within a single valve body. Operating at a rated pressure of 20.6 MPa (206 bar) via a 24V DC power supply, it features a top-mounted integrated digital electronic amplifier block equipped with an onboard two-digit diagnostic LED troubleshooting display. It is extensively utilized in precise industrial machinery automation, such as plastic injection molding machines and metal forming presses, to achieve smooth acceleration, deceleration, and high-accuracy speed profiling of hydraulic cylinder actuators.

Proportional Control Valves. EP Series Superior Control Provides continuous or multi-stage control of flow and pressure.
