Cavity: T-31A
Capacity: 1.5 – 8 gpm
Maximum Operating Pressure: 5000 psi
Divisional Accuracy at Minimum Input Flow: 50% ±4.5%
Divisional Accuracy at Max Input Flow: 50% ±2.5%

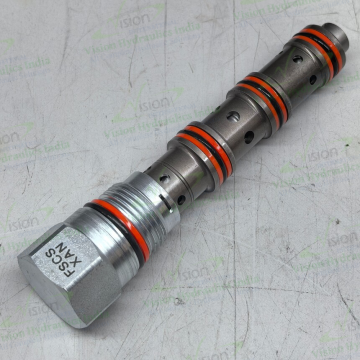

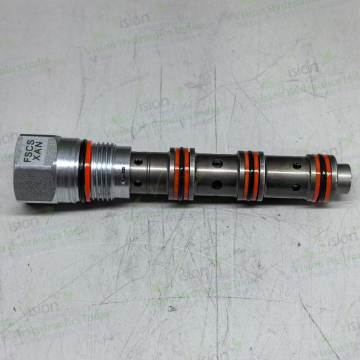

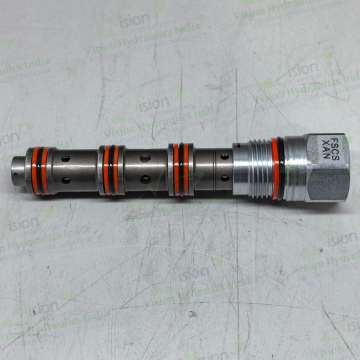

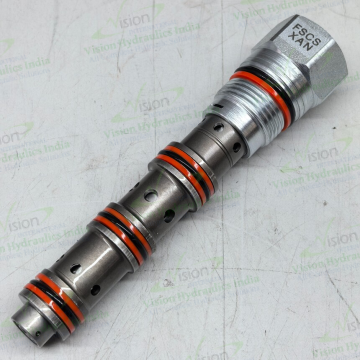

Synchronizing flow divider/combiners are sliding-spool, pressure-compensated devices used to split flow in one direction and combine flow in the opposite direction. With a sychronizing feature, these valves can be used to allow two hydraulic cylinders to fully stroke and synchronize at the end of the stroke. When the first cylinder has reached the end of its stroke, a pressure-compensated, reduced flow is metered to or from the second cylinder until it also reaches the end of its stroke.
